Chinese Factory Good Quality RG 11 CCTV 14AWG Coaxial Cable

Chinese Factory Good Quality RG 11 CCTV 14AWG Coaxial Cable, 75 Ohm SDI Coaxial Cable, RG-11, 14AWG Solid Bare Copper Conductor, Foamed HDPE Insulation, Aluminum Foil Screened, Tinned Copper or Bare Copper Braid Shield, PVC Sheath/Jacket, CMR flame retardant. Coaxial cable, or coax is a type of r conductor surrounded by a concentric conducting shield, with the two separated by a dielectric; many coaxial cables also have a protective outer sheath or jacket. The term coaxial refers to the inner conductor and the outer shield sharing a geometric axis.

keyword:

· Classification:

Coaxial Cable

· Order(MOQ)

Seebest

· Payment:

T/T, L/C, Cash.

· Product Origin:

Xiamen City, China.

· Color:

Black, or white.

· Shipping Port:

Xiamen port, China.

· China.Lead Time:

Within 7-10 working days as soon as we received the deposit.

PRODUCT DETAILS

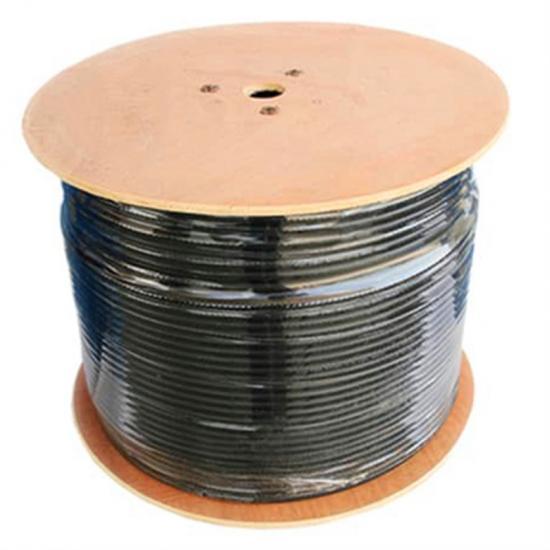

Chinese Factory Good Quality RG 11 CCTV 14AWG Coaxial Cable

Chinese Factory Good Quality RG 11 CCTV 14AWG Coaxial Cable



PRODUCTS NAME

Chinese Factory Good Quality RG 11 CCTV 14AWG Coaxial Cable.

PRODUCTS KEYWORDS

Coaxial Cable, SYWV75-5, RG 6, RG 11, RG 59, CCTV cable, CATV cable, CT coaxial cable, Cable Television Connect Cable, factory cheap.

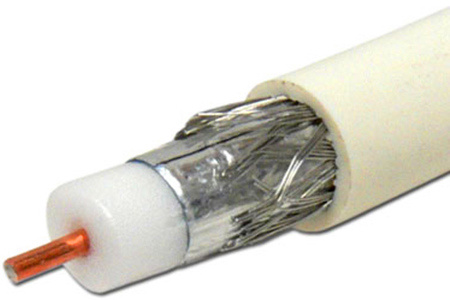

                 RG 11 coaxial cable

PRODUCTS APPLICATION

Chinese Factory Good Quality RG 11 CCTV 14AWG Coaxial Cable. Coaxial cable can be used for the transmission of analog and digital signals and is suitable for a variety of applications, among which the most important ones are television transmission, long-distance telephone transmission, short-distance connection between computer systems and local area networks. As a means of transmitting TV signals to thousands of households, coaxial cable has developed rapidly, which is cable TV. A cable TV system can load dozens or even hundreds of TV channels, and its transmission range can reach tens of kilometers. Coaxial cable has long been an important part of long-distance telephone network. Today, it faces increasingly fierce competition from optical fiber, ground microwave and satellite.



PRODUCTS FEATURES

Chinese Factory Good Quality RG 11 CCTV 14AWG Coaxial Cable, can be divided into 2 kind of types, baseband coaxial cable and broadband coaxial cable. The coaxial cable has the follow features:



1. Excellent conductor medium, low attenuation and high signal transmission.

2. High performance physical foam insulation, low dielectric constant, small attenuation loss, and stable long-distance transmission.

3. The product has passed the UL 444 certification and has excellent quality.

PRODUCTS RELATIVE-MERITS

Chinese Factory Good Quality RG 11 CCTV 14AWG Coaxial Cable, advantages of coaxial cable: it can support high bandwidth communication on a relatively long line without repeater. However, their disadvantages are also obvious: first, they are large in size, and the diameter of the thin cable is 1.02mm, which requires a lot of space in the cable duct; Second, it can not bear entanglement, pressure and severe bending, which will damage the cable structure and prevent signal transmission; Finally, the cost is high, and all these disadvantages can be overcome by conventional network lines. Therefore, in the current LAN environment, many places can use network cable instead of coaxial cable.

PRODUCTS STRUCTURER

Chinese Factory Good Quality RG 11 CCTV 14AWG Coaxial Cable

1. Conductor Material: Plain annealed copper wire, solid Class 1, 18AWG.

2. Insulated Material: Foam HDPE (polyethylene).

3. Shielded Material: Aluminum Foil Tape

4. Braided Material: Bare copper wire, or tinned copper wire.

5. Sheath Material: PVC or LSZH.

RG 6 coaxial cable

PRODUCTS DIMENSIONS

 Description of Cable   Products Main Technical Sheet
 Products Name

 Chinese Factory Good Quality RG 11 CCTV 14AWG Coaxial Cable.

 Conductor Material  Plain annealed copper wires, Class 1.
 Conductor Structure  1C x 1/1.63 mm, 14AWG, 0.064".
 Insulation Material  Foam PE (Polyethylene).
 Insulation Thickness  2.74 mm, 0.108".
 Insulation Colour

 white.

 Shielded Material  Aluminum Foil Tape, 100% coverage, overlap >2mm.
 Braided Material  Bare or Tinned Copper Wire; coverage: >60%; 64x0.1mm.
 Sheath Material  PVC (Polyvinyl Chloride).
 Sheath Thickness   0.76 mm, 0.03".
 Sheath Colour  White, or black.
 Core Number  Single core, 1 core, 1C.
 Out Diameter  10.0 mm, 0.395".
 About Net Weight  118 kg/box.
 Production Standard  GY/T 135-1998, IEC 60096-0-1-2012, EN 50117-1, ANSI/SCTE 74.
 Packing Type

 100 Meters per roll, the rolls will be loaded on Wooden Pallet;

  the wooden pallet must be showed the IPPC logo.

 RG 6 coaxial cable



COMPANY PROFILE

Xiamen Seebest Wire & Cable Co., Ltd, was established in 2009, is located in Xiamen City, Fujian Province, China. It has 2 industrial parks, a total area of 100,000 square meters. The company is one of the largest manufacturers specializing in research, development, production, and sales of wires and cables in East China.

COMPANY ADVANTAGE



---Reasonable Price, Overvalue Products, Quickly Delivery, Foremost Services.

---ISO9001, CCC, CE, SAA, VDE, DEKRA, UL, RoHS, and other certificates.

---20 years of professional experience in wire and cable manufacturing, sales, and service.

---One hour arrives at Xiamen airport, seaport, High-speed Railways station, and bus station.

---2 professional engineers, 8 rigorous QC staff, and a total of 168 experienced staff.

---Familiar with GB, JB, IEC, AS/NZS, BS, VDE, TüV, UL, and other standards, can be customized for wire and cables according to the customer's requirements.



Seebest Cable Advantages

COMPANY PRODUCTS



---Electrical Wires: PVC or LSZH Insulated Electrical Wires.

---Power Cables: 0.6/1kV PVC, XLPE, or LSZH Insulated Power Cables.

---Electronic Wires: UL 62, UL 1007, UL1015, UL 2464, UL 2468, VDE 0281, VDE 0282, VDE 0250, and other Electronic Wires.

---Power Plugs: CCC, UL, VDE, and other standards Power Plugs.

---Customized Wire and Cables: Fire Retardant Cables, Fire Resistant Cables, Mineral Insulated Fire Resistant Cable, RoHs Cables, and Environmental Protection Cables.

---Communication Cables: Network Cables, Telephone Cables, Coaxial Cables, Speaker Cables.



                            very good

COMPANY SLOGAN



Seebest Cable: Become the most trusted cable company in China.

Seebest Cable: Focus on Quality, Foremost Service.

Seebest Cable: It is your Production Base, Overseas Warehouse, Purchase Consultant, Technology Supporter, and Sales Assistant in Wire and Cables Industry.



COMPANY CERTIFICATES

Seebest CCC CertificatesSeebest DEKRA Certificates

Seebest SAA CertificatesSeebest UL Certificates

Seebest VDE CertificatesSeebest Foreign Trade LicenseSeebest Patents Certificates



RAW MATERIAL

Seebest Copper MaterialSeebest Plastic Material



MAIN PRODUCTS

Seebest Electrical WiresSeebest Power Cables

Seebest Special CablesSeebest Communication Cables



PRODUCTION PROCESS

Seebest Production Process



TESTING PROCESS

Seebest Testing Process

PACKING TYPES

Seebest Cable Packing



PRODUCTS SHIPMENT

Seebest Cable Shipment

FOREMOST SERVICES

Seebest Cable Services 1Seebest Cable Services 2



FREQUENTLY ASKED QUESTIONS



1. Are you a manufacturer or trading company?

We are a professional manufacturer, we can control your order from the first beginning to the last. Welcome to visit us, we'll pick you up in Xiamen City, China.





2. How can I get a sample to test your quality?

The samples are free for you, new clients are expected to pay for the courier costs.





3. What’s your Minimum Order Quantity?

Normally 100 meters. However, the cable is very heavy, you'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.





4. Can I get a discount?

It depends on your quantity, We can make a discount and afford the freight. Please kindly contact us.





5. Does your company accept OEM production?

Yes, could print your company name, we even custom the quality card to promote your company.
