TUV Certified PV1-F DC Solar PV Cable
keyword:
· Classification:
PV1-F
· Order(MOQ)
3000 M
· Payment:
T/T, L/C
· Product Origin:
Xiamen City, China.
· Color:
Red / Black
· Shipping Port:
Xiamen port, China.
· China.Lead Time:
7-30 days
PRODUCTS
PRODUCT DETAILS
APPLICATION
PV1-F Solar Cable is intended for use in Photovoltaic Power Supply Systems: Indoor and/or outdoor, in industrial and agriculture fields. They are suitable for applications in equipment with protective insulation , in explosion hazard areas and may be installed as well as fixed or freely suspended or free movable. Installation in cable trays, conduits, on and in walls is available.
PRODUCT DESCRIPTION
Conductor:Annealed soft tin copper
Insulation:Low smoke halogen free irradiatedcrosslinked polyolefin(XLPO)
Sheath:Low smoke halogen free irradiateccrosslinked polyolefin(XLPO)
Voltage Rating：AC Uo/U 0.6/1.0KV, DC: 1.0KV
Voltage test on completed cable: AC6.5KV/5min, DC15KV/5min
Ambient temperature: -40℃-+90℃
The expected period of use is 25 years(Ambiet temperature:-40℃ up to+90℃
The permitted short -circuit-temperature referring to a period of 5s is+200℃
Heat extension: EN60811-2-1
Bending radius:≥4xD(D<8mm)≥6xD(D>8mm )

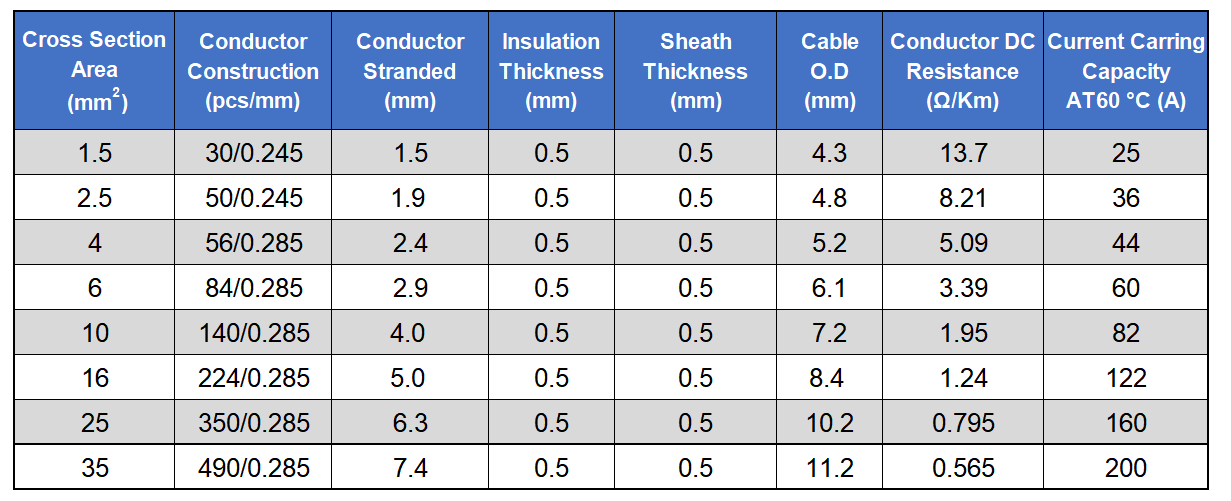

THE SPECIFICATION OF CABLE
